Productdetails:
|
| Garantie: | 2 jaar | Temperatuurwaaier: | NSS, AASS 35°C±2°C, CASS 50°C±2°C |
|---|---|---|---|
| Nauwkeurigheid uniform: | ±0.1℃; ±0.1%R.H./±1.0℃; ±3.0%R.H. | Voltage: | AC220V 50/60Hz 1 of AC380V 50/60Hz 3 |
| Buitengrootte WxHxD (cm): | 150x186x157 | De veelvoudige apparaten van de veiligheidsbescherming: | Watertekort, over temperatuur, fasebescherming |
| Eigenschap: | Touch screen | Macht: | Elektronisch |
| Hoog licht: | AC380V de Kamer van de stabiliteitstest,ROHS-de Kamer van de Stabiliteitstest |
||

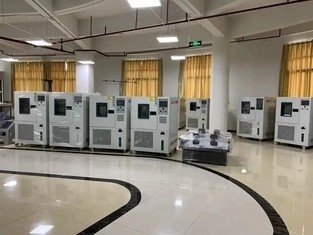

Drug Storage Environment Temperature And Humidity Stability Test Box
Product Description:
Environmental Constant Temperature Humidity Climatic Test Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Applicable industries:
Environmental Constant Temperature Humidity Climatic Test Chamber applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Features:
1.High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2.Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3.Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4.With an external water supply system can be easy to supply water and automatically reuse.
5.Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).
6.Controller imported LCD display screen can be displayed measuring values and setting the value and time.
7.Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8.Built-in mobile pulley easy to move and has a strong positioning screw fixed position
Specification:
| Inside size WxHxD (cm) | 40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 | 100x100x80 | 100x100x100 |
| Outside size WxHxD (cm) | 100x170x87 | 105x175x97 | 115x190x97 | 135x195x115 | 145x185x137 | 145x210x130 | 147x210x140 |
| Temperature range | -70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
||||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) | ||||||
| Accuracy/ uniformly | ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | ||||||
| Accuracy / volatility | ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. | ||||||
| Heating / cooling time | About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) | ||||||
| Inside material | Stainless steel SUS 304# | ||||||
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||||
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃) | ||||||
| protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system | ||||||
| accessories | recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball | ||||||
| controller | TEMI300 digital controller from South Korea | ||||||
| compressor | France Tecumceh | ||||||
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||
FQA:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
A:Yes, we are manufacturer of 1000L Touch Screen Laboratory Equipment Constant Temperature Humidity Climatic
Test Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you
can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can
send you new spare parts or provide on-site repair.
2. What’s the delivery term?
A :If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a
special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine
